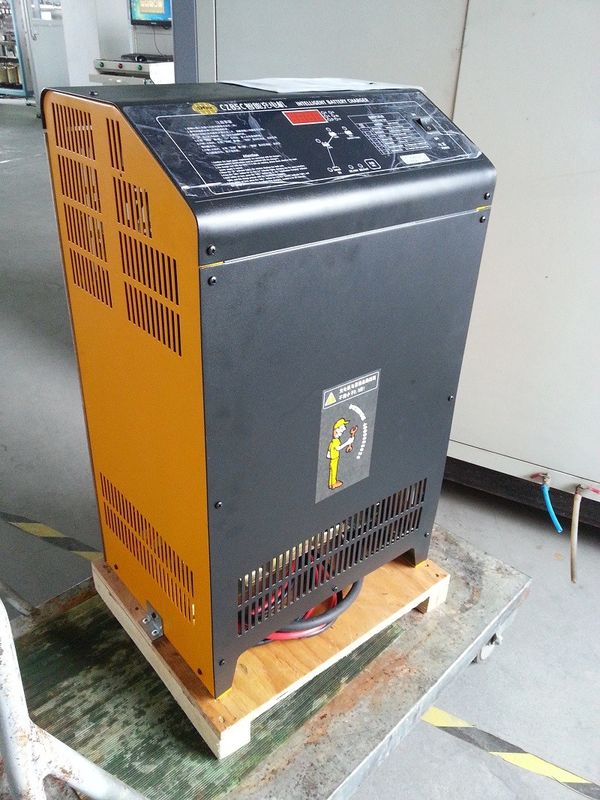

48V 100A Forklift Battery Charger with Silicon-Controlled Rectifier

100A 48V Forklift Lithium Ion Battery Chargers Silicon Controlled Rectifier

Introduction:

Forklift Lithium Ion Battery Chargers can meet the charging needs of various types of lead-acid batteries and can be used for normal charging and maintenance charging of electric vehicles, such as forklift, electric flat cars, electric stackers and tourist cars. With the optimized Wa curves, with the application of microprocessor control technology and intelligent dynamic regulating charging technology, so the charging can penetrate into inside of battery plate to reach a complete charging and during the charging process, keep the battery in the state of micro scale bubbling to reduce the evaporating of electrolytic obviously to raise the charging efficiency and battery working life. The product has the feature of perfect function, smart outlook, new man-machine interface, high power factor, energy saving with complete range of type and specification,desktop and vertical stand cubics; it is an idea choice for wide range of customers.

Product Catalogs:

1. Three-phase AC(3/PE) input power voltage.

Product Features:

• The Voltage and current double closed-loop framework is applied in the PID control technology. This device can achieve dynamic tracking and automatic adjustment of charge parameters.
• Nixie tube would display charger parameters such as battery voltage, charge current, capacity and recharged time. It could als show the code of charging curve and fault. High-intensity LED lamp would indicate running state of this charging unit.
• Functions of automatic detection, delaying and soft-start, Function of temperature compensation. The voltage of tipping point of gas emission would change with the temperature.
• Tis device could also record data as the end of recharge for 30 times.
• Protection and alarm functions of open crcuit, reverse connection, over load and short circuit breakdown.
• Protection and alarm functions of overheat fault of transformer and module.
• Equalization charge could ensure caacity consistency of battery packs, function of automatic initial charge, function of desulfuration charge.

Our Service

We will provide the best service for user both during selling and after-sales. Welcome the customer to choose our products. Please, inform us the type and specification of battery, we can recommend the most suitable charger for you.
